How to use BeauGauge ActiveX control in your LabWindows/CVI project

BeauGauge Instruments Suite's BeauGauge Control will manage to display the finally designed control template in the user interface. It is an ActiveX control, which can be taken anywhere to use ActiveX control, including all mainstream IDEs (Integrated Development Environment). The following demonstrates How to use BeauGauge Control in IDE:

IDE (Integrated Development Environment) is LabWindows/CVI 2012.

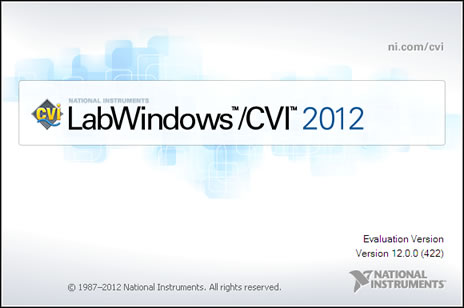

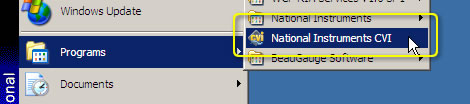

  1. 1. Launch LabWindows/CVI.

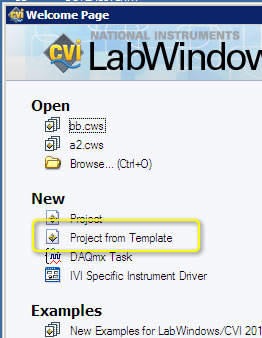

    2. Select Project from Template...

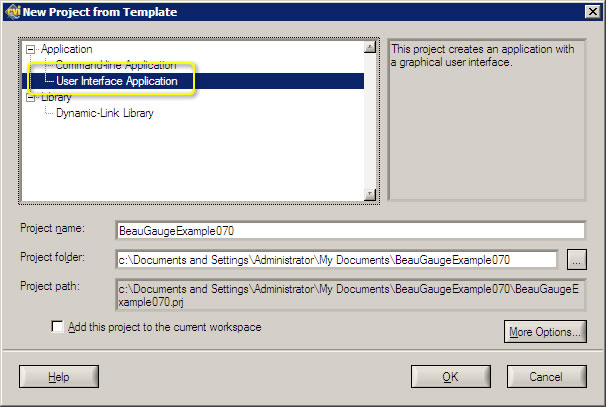

3. Create project User Interface Application.

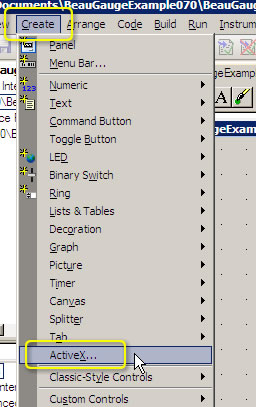

4. Select ActiveX...

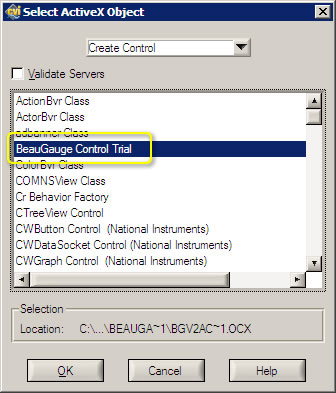

5. In Select ActiveX Object dialog, select BeauGauge Control and click OK button.
(If you are trial user, please install "BeauGauge Control Trial". Click here to download.)

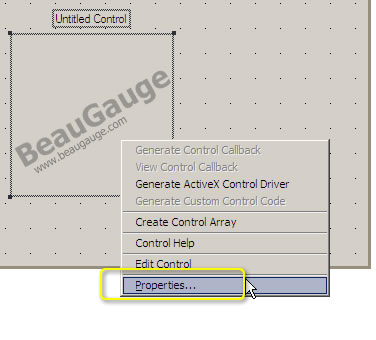

6. Select Properties... in the right-click menu of the control.

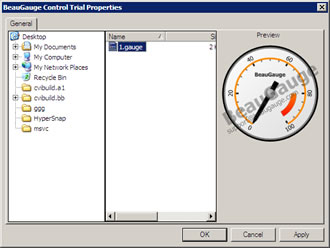

7. Import the control template file gauge1.bg7. The template file can be removed after it has been imported to project.
(If you could not find gauge1.bg7, click here to download.)

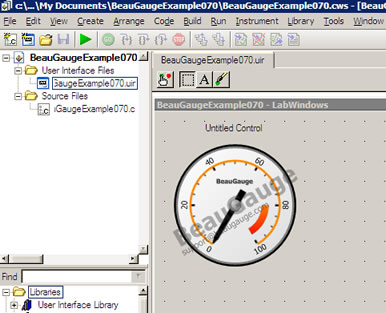

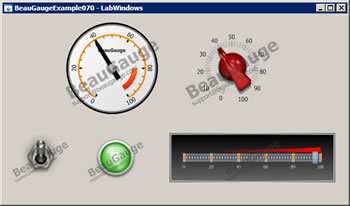

8. So far, BeauGauge control has been added to the window, see below:

9. Download the Project.
