Q: What should I prepare before execute Demo or edit Example?
A: Require first to install "BeauGauge Control Trial". Download link http://www.beaugauge.com/download-beaugauge-control-trial.html.

Q: I have installed "BeauGauge Control Trial", but still cannot execute Demo and edit Example, how to do?
A: If this Demo cannot be executed or has some issues on running, it is probably the BeauGauge Control Trial you have installed is not a latest version. Please uninstall first, then install latest version of BeauGauge Control Trial.

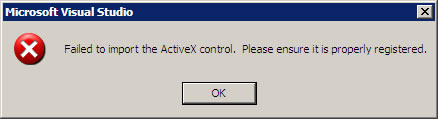

Q: In VB.NET project, after insert Control to a Form, it pops up the following dialog, how to fix?

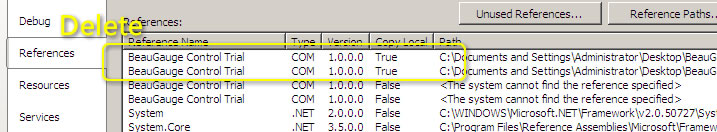

A:This issue is caused by upgrade of BeauGauge ActiveX Control. To fix it, you should delete those reference in "References" under "[your project] Properties" menu (see below).

Q:In C# project, after insert Control to a Form, it pops up the following dialog, how to fix?

A:This issue is caused by upgrade of BeauGauge ActiveX Control. To fix it, you should delete those reference under "References" in "Solution Explorer" window (see below).

Q: Open a Delphi project and pop-up the following  error, how to solve it?

A: It requires to import BeauGauge ActiveX Control, please refer to following steps.

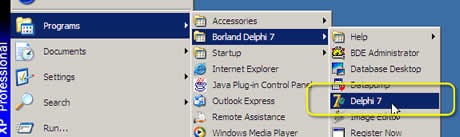

1. Launch Borland Delphi.

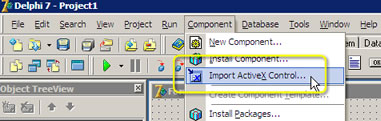

2. Select "Import ActiveX Control...".

3. In "Import ActiveX" dialog, select "BeauGauge ActiveX Control module" and click "Install..." button.

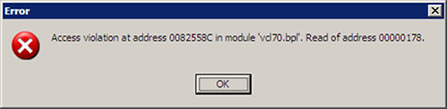

Q: Open a C++ Builder project and pop-up the following  error, how to solve it?

A: It requires to import BeauGauge ActiveX Control, please refer to following steps.

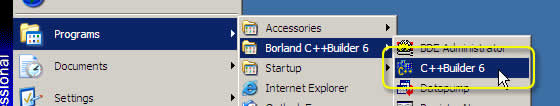

1. Launch Borland C++Builder.

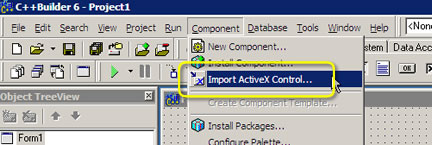

2. Select "Import ActiveX Control...".

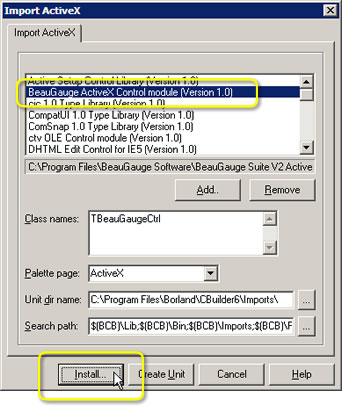

3. In "Import ActiveX" dialog, select "BeauGauge ActiveX Control module" and click "Install..." button.

Q: When compiling project in C++ Builder 2010, it occurs the following error, how to solve it?

or

A: Please follow the steps below

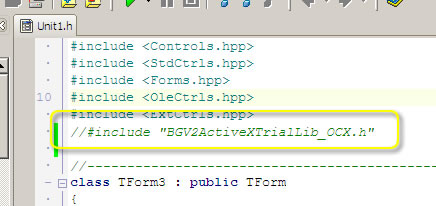

1. Comment out this code below.

2. Re-compile the App, click "..." button on pop-up "Find Header File" dialog.

3. Select "BGV2ActiveXTrialLib_OCX.h". (In my PC, its path is "C:\Documents and Settings\Administrator\My Documents\RAD Studio\7.0\Imports")

Q:When I install BeauGauge Control on Win 2000, it pops up the following dialog, how to solve it?

A: Please put gdiplus.dll under “winnt\system32” of your system disk.
